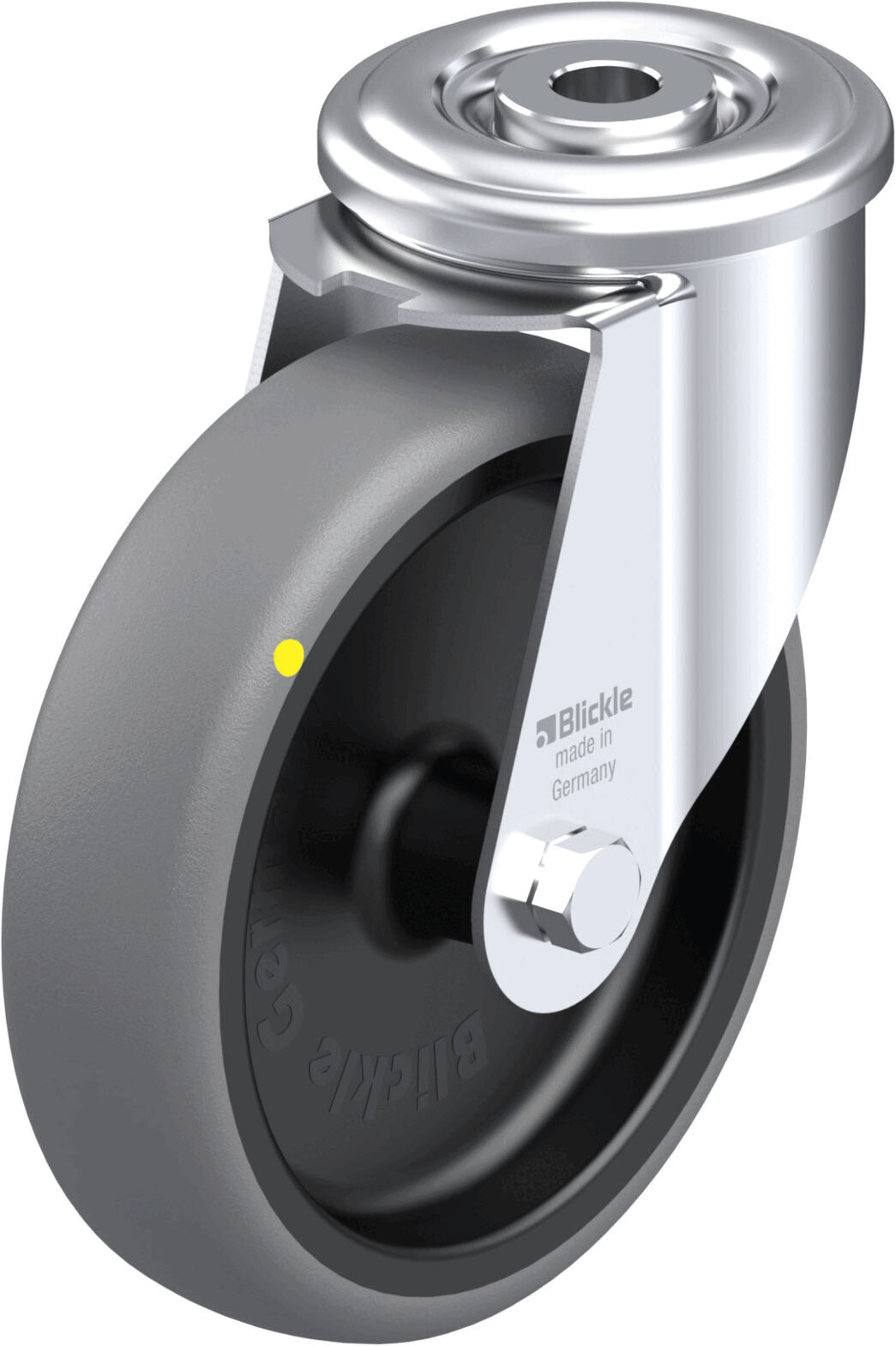

ESD Swivel castors with bolt hole 600, load capacity 200 kg
ESD Swivel Casters with Back Hole 600, Load Capacity 200 kg
The ESD swivel casters with back hole from the 600 series have a load capacity of 200 kg and are particularly durable and robust due to their high-quality equipment. The housing of the LER series is made of galvanically galvanized, blue passivated sheet steel and is Cr6-free. The double ball bearing in the swivel ring, a stable center bolt, and minimal swivel ring play ensure smooth running. The wheel of the TPA series features a tread made of high-quality thermoplastic rubber elastomer (TPE) and a wheel body made of impact-resistant polypropylene. Additionally, the product offers high chemical resistance and a temperature resistance from -20 °C to +60 °C. The ESD standard DIN EN 61340-5-1 is met.
Technical Data:
- Load capacity (static): 200 kg
- Wheel Ø: 125 mm
- Total height: 150 mm
- Outreach: 40 mm
- ESD: yes
- Conductivity: conductive
- Weight: 600 g
- Shore hardness: 85 Shore A
- Mounting type: Back hole
- Plate diameter: 70 mm
- Wheel/caster type: Unbraked swivel caster
- Wheel width: 32 mm
- Wheel bearing: Plain bearing
- Back hole: 13 mm
- Temperature resistance: -20 - 60 °C
- Load capacity in motion: 80 kg
Item number: 623.125.ELS
The ESD swivel casters with back hole from the 600 series have a load capacity of 200 kg and are particularly durable and robust due to their high-quality equipment. The housing of the LER series is made of galvanically galvanized, blue passivated sheet steel and is Cr6-free. The double ball bearing in the swivel ring, a stable center bolt, and minimal swivel ring play ensure smooth running. The wheel of the TPA series features a tread made of high-quality thermoplastic rubber elastomer (TPE) and a wheel body made of impact-resistant polypropylene. Additionally, the product offers high chemical resistance and a temperature resistance from -20 °C to +60 °C. The ESD standard DIN EN 61340-5-1 is met.
Technical Data:
- Load capacity (static): 200 kg
- Wheel Ø: 125 mm
- Total height: 150 mm
- Outreach: 40 mm
- ESD: yes
- Conductivity: conductive
- Weight: 600 g
- Shore hardness: 85 Shore A
- Mounting type: Back hole
- Plate diameter: 70 mm
- Wheel/caster type: Unbraked swivel caster
- Wheel width: 32 mm
- Wheel bearing: Plain bearing
- Back hole: 13 mm
- Temperature resistance: -20 - 60 °C
- Load capacity in motion: 80 kg
Item number: 623.125.ELS
Details
- Load capacity (static) Load capacity (static)
- 200 kg
- Wheel Ø Wheel Ø
- 125 mm
- Total height Total height
- 150 mm
- Bolt hole Bolt hole
- 13 mm
- Mounting typ Mounting typ
- bolt hole
- Plate diameter Plate diameter
- 70 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 32 mm
- Wheel/castor type Wheel/castor type
- swivel castor unbraked
- Offset Offset
- 40 mm
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 80 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 600
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Load capacity (static) | Wheel Ø | Total height | Price | Compare |
|---|---|---|---|---|---|---|
|
623.080.ELS ESD Swivel castors with bolt hole 600, load capacity 165 kg | 165 kg | 80 mm | 102 mm | 16,00 EUR | |
|
623.125.ELS ESD Swivel castors with bolt hole 600, load capacity 200 kg | 200 kg | 125 mm | 150 mm | 18,10 EUR | |
|

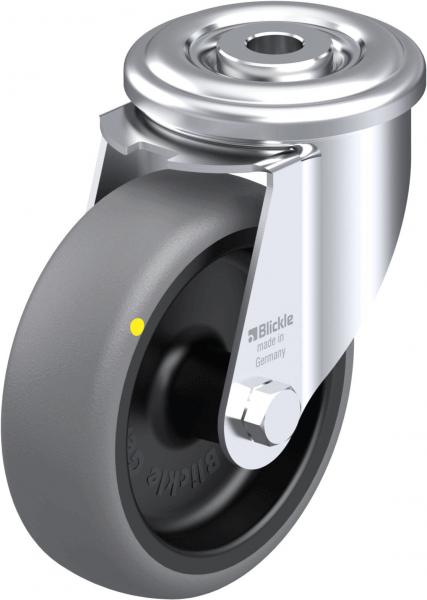

623.100.ELS ESD Swivel castors with bolt hole 600, load capacity 175 kg | 175 kg | 100 mm | 125 mm | 18,10 EUR | |
