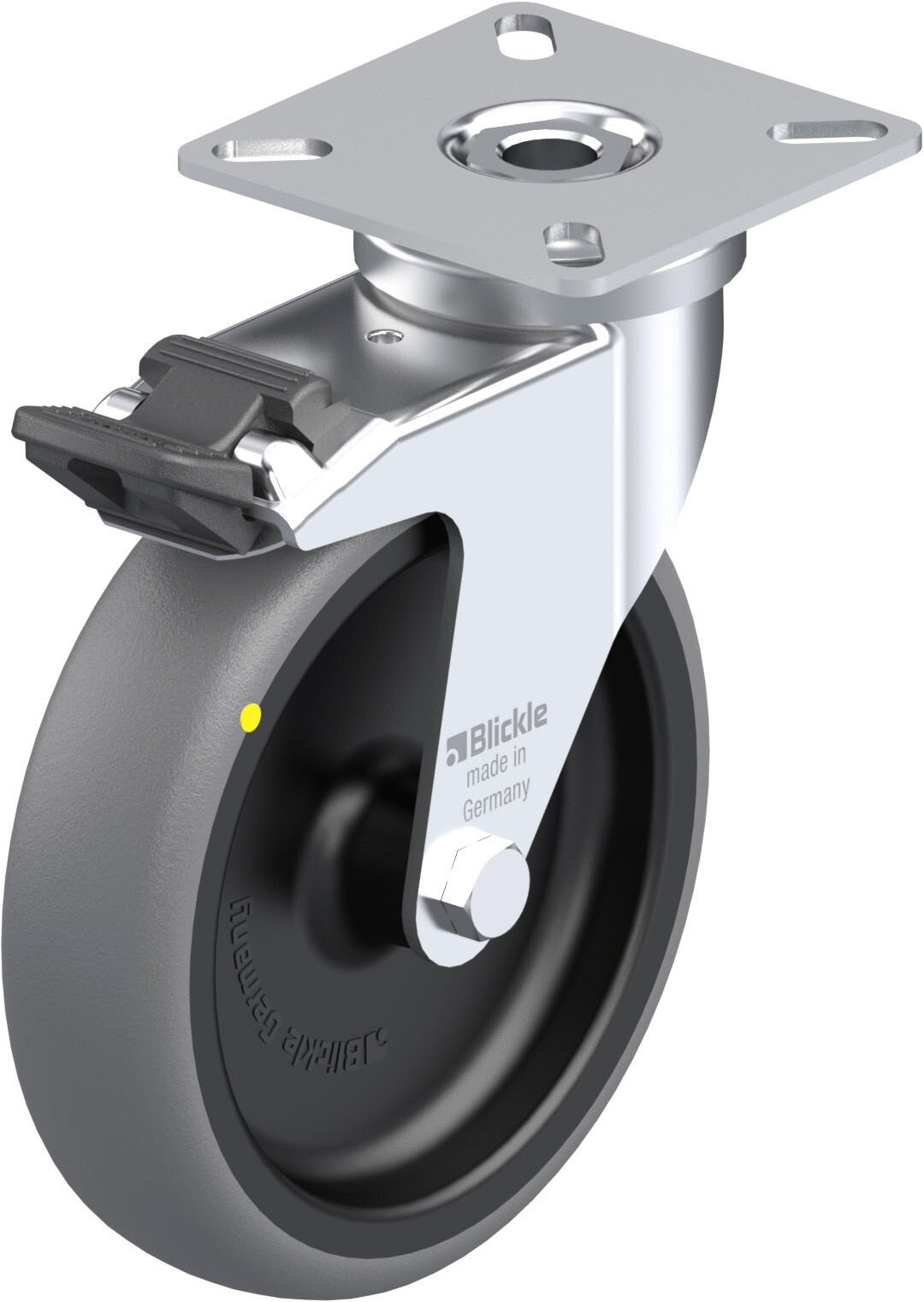

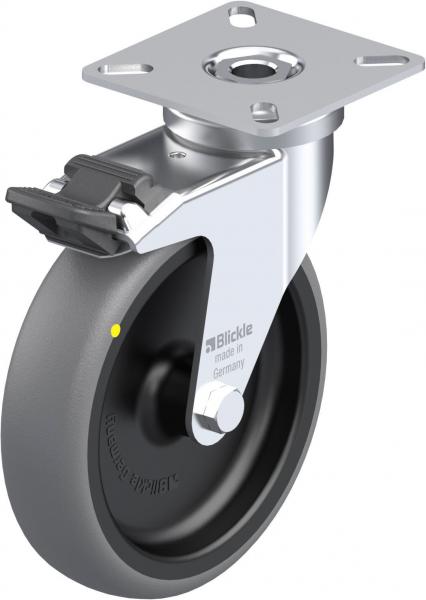

ESD Light duty swivel castor with top plate - "stop-fix" 650, load capacity 150 kg
ESD Equipment Caster Wheel with Mounting Plate - "stop-fix" 650, Load Capacity 150 kg
This ESD equipment caster wheel from series 650 with the item number 604.100.SF.ELS features a mounting plate and a load capacity of 150 kg. The housing is made of galvanically zinc-plated steel sheet, blue passivated and Cr6-free, with double ball bearing in the swivel head, sturdy central bolt, and minimal swivel head play for smooth running and high durability. The wheel is made of high-quality polypropylene with a tread made of thermoplastic rubber elastomer (TPE), which is non-marking and oil-resistant.
Technical Specifications: - Wheel Diameter: 100 mm - Overall Height: 123 mm - Offset: 33 mm - Wheel Width: 25 mm - Plate Dimensions: 60 x 60 mm - Bolt Hole: 6.2 mm - Bolt Hole Spacing: 48 x 48 mm - Weight: 400 g - Temperature Resistance: -20 °C to +60 °C - Load Capacity (static): 150 kg, in motion: 60 kg - ESD compliant according to DIN EN 61340-5-1 - High chemical resistance and locking features for added stability.
This ESD equipment caster wheel from series 650 with the item number 604.100.SF.ELS features a mounting plate and a load capacity of 150 kg. The housing is made of galvanically zinc-plated steel sheet, blue passivated and Cr6-free, with double ball bearing in the swivel head, sturdy central bolt, and minimal swivel head play for smooth running and high durability. The wheel is made of high-quality polypropylene with a tread made of thermoplastic rubber elastomer (TPE), which is non-marking and oil-resistant.
Technical Specifications: - Wheel Diameter: 100 mm - Overall Height: 123 mm - Offset: 33 mm - Wheel Width: 25 mm - Plate Dimensions: 60 x 60 mm - Bolt Hole: 6.2 mm - Bolt Hole Spacing: 48 x 48 mm - Weight: 400 g - Temperature Resistance: -20 °C to +60 °C - Load Capacity (static): 150 kg, in motion: 60 kg - ESD compliant according to DIN EN 61340-5-1 - High chemical resistance and locking features for added stability.
Details
- Load capacity (static) Load capacity (static)
- 150 kg
- Wheel Ø Wheel Ø
- 100 mm
- Total height Total height
- 123 mm
- Bolt hole Bolt hole
- 6.2 mm
- Bolt hole spacing Bolt hole spacing
- 48 x 48 mm
- Mounting typ Mounting typ
- top plate
- Plate dimensions Plate dimensions
- 60 x 60 mm
- Wheel bearing Wheel bearing
- plain bearing
- Wheel width Wheel width
- 25 mm
- Wheel/castor type Wheel/castor type
- light duty swivel castor braked
- Offset Offset
- 33 mm
- Conductivity Conductivity
- conductive
- Load capacity when moving Load capacity when moving
- 60 kg
- Shore hardness Shore hardness
- 85 Shore A
- ESD ESD
- yes
- Temperature resistance Temperature resistance
- -20 - 60 °C
- Weight [g] Weight [g]
- 400
Downloads
- Please log in to download datasheets! :
- There are several datasheets for this product. Please log in!
Catalogues
Product Family
| Article image | Article description | Load capacity (static) | Wheel Ø | Total height | Price | Compare |
|---|---|---|---|---|---|---|
|
604.075.SF.ELS ESD Light duty swivel castor with top plate - "stop-fix" 650, load capacity 125 kg | 125 kg | 75 mm | 100 mm | 11,90 EUR | |
|
604.100.SF.ELS ESD Light duty swivel castor with top plate - "stop-fix" 650, load capacity 150 kg | 150 kg | 100 mm | 123 mm | 12,45 EUR | |
|
604.050.SF.ELS ESD Light duty swivel castor with top plate - "stop-fix" 650, load capacity 75 kg | 75 kg | 50 mm | 71 mm | 10,65 EUR | |
| Show Compare List (0) | ||||||
